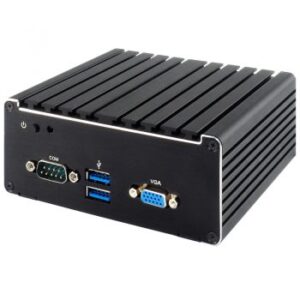

Fanless Apollo Lake System (Box PC)
- Intel Apollo Lake SoC Processor
- 1 * SO-DIMM DDR3L up to 8GB
- 4 * USB3.0, 1 * COM, 1 * VGA, 2 * HDMI, 2 * RJ45, 1 * Audio (MIC + Line-out Combo)
- Description
- Specification
We are pleased to introduce our cutting-edge Industrial Box PC, which is equipped with an Intel Apollo Lake SoC Processor and is built to withstand the rigors of industrial applications. Here is a thorough breakdown of its salient characteristics:
Effective Processing: The Intel Apollo Lake System-on-Chip (SoC) Processor, which offers outstanding performance and dependability for your industrial computing needs, is at the center of our Industrial Box PC. This processor ensures smooth and effective functioning whether you're managing crucial data or performing complex calculations.
This Box PC has a single SO-DIMM DDR3L slot and can accommodate up to 8GB of RAM. Due to this, memory-intensive apps can be run concurrently and without experiencing any performance issues.
Flexible Connectivity: A wide variety of connectivity choices are available with the Industrial Box PC, including 4 USB 3.0 ports, 1 COM connector for older devices, 1 VGA port, and 2 HDMI ports for high-definition displays. It also has two RJ45 Ethernet ports for dependable network connectivity and a dedicated Audio connector with MIC and Line-out for a variety of industrial applications.
Small Form Factor: This Box PC has a space-saving design with a motherboard form factor of NUC (101x101mm) without sacrificing performance. It is simple to integrate into your current system and saves important workspace because to its compact footprint.
Effective Power Supply: The Industrial Box PC uses a DC-12V_40W adaptor, which makes it energy-efficient. With minimal power consumption and maximum performance, our low-power solution guarantees cost-effectiveness.
Our Industrial Box PC with Intel Apollo Lake SoC Processor is the ideal option if you require a powerful computing solution for factory automation, data acquisition, or industrial control systems. It is a dependable and effective solution for your industrial computing requirements thanks to its small size, numerous connectivity options, and strong performance. You can rely on its performance and dependability to keep your operations going properly.
BIOS | – AMI 128MB SMT Flash ROM | |
CPU/Chipset | – INTEL® Apollo Lake N3350 SoC Processor (TDP : 6W) | |
Memory | – 1 * DDR3L-1866MHz SO-DIMM up to 8GB | |
Storage | – 1 * full-size mSATA/Mini-PCI Express shared slot | |
Network | – 2 * GbE | |
Rear Panel I/O | – 2 * USB 3.0 | |

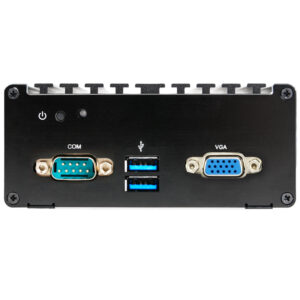

Front Panel I/O | – 1 * Power button | |
Power Source | – AC-DC Adapter / DC12V-40W | |
Compliance | – CE, FCC, RoHS, ErP Ready | |
Temperature | – Operating Temperature: 0 ~ 50° C | |
Dimensions | – 116 (W) x 110 (D) x 49 (H) mm | |
Packing | – Net Weight: 0.9KG | |
OS Support | – Windows 10, Linux | |
Warranty | – 2 Years limited warranty | |
